Humidifiers

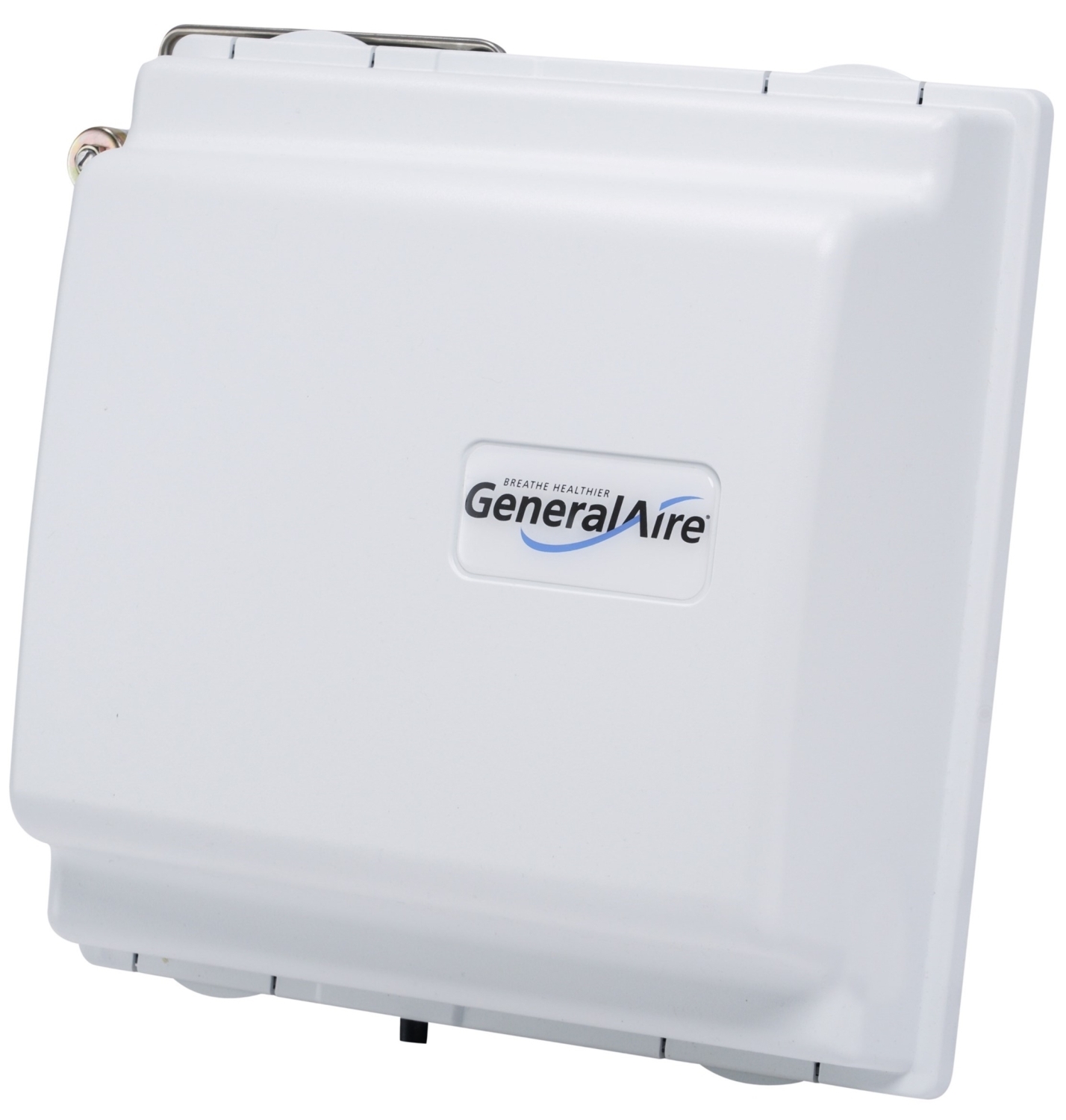

3200A
General Aire
Evaporative Humidifier
For Homes Up To 3200 Square Feet
- Type: bypass evaporative
- Gallons per day: 12 (based on 120° F plenum temperature)
- Dimensions (inches): 12 1/4 H x 12 W x 8 1/2 D
- Weight (pounds): 3.5
- Vapor Pad® replacement: GA10 (GFI #7905)
- Replace 1-2 times per season
- For home sizes up to 3,200 square feet
- Plenum opening (inches): 9 1/8 W x 9 1/8 H
- Bypass opening (inches): 6
- Pallet quantity (units): 36
- Installation: warm air / return air plenum / right of left side
- Control: GFX4 digital automatic-control humidistat; controls the furnace blower motor
- Power (volts): 24
- Warranty (years): 5
- Maximum Humidity Output Through:
- Low-profile cover that forces air directly through the Vapor Pad® at its warmest point
- Stainless steel distributor tube for cold or hot water supply
- Redesigned cover and chassis to direct hot furnace air directly through the Vapor Pad®
- Reduced Vapor Pad® frame for maximum pad exposure
- Left or right bypass installation option
- Left or right solenoid valve installation option
- Easy Maintenance Through:
- Snap-in-place, easy lift-off cover
- Sturdy two-piece Vapor Pad® frame that easily pulls apart to release & replace the Vapor Pad®
Your furnace sends warm air through the humidifier and a water-soaked Vapor Pad®, evaporating water within the Vapor Pad®. Newly-moistened air is then delivered throughout your home via your home’s duct system. Breathe Healthier® with a GeneralAire® 3200 Evaporative Humidifier.
4200A
General Aire
- Type: bypass evaporative
- Gallons per day: 17 (based on 120° F plenum temperature)
- Dimensions (inches): 15 1/4 H x 12 W x 8 1/2 D
- Weight (pounds): 3.5
- Vapor Pad® replacement: GA35 (GFI #7902)
- Replace 1-2 times per season
- For home sizes up to 4,200 square feet
- Plenum opening (inches): 9 1/8 W x 12 H
- Bypass opening (inches): 6
- Pallet quantity (units): 30
- Installation: warm air / return air plenum / right of left side
- Control: GFX4 digital automatic-control humidistat; controls the furnace blower motor
- Power (volts): 24
- Warranty (years): 5
- Maximum Humidity Output Through:
- Low-profile cover that forces air directly through the Vapor Pad® at its warmest point
- Stainless steel distributor tube for cold or hot water supply
- Redesigned cover and chassis to direct hot furnace air directly through the Vapor Pad®
- Reduced Vapor Pad® frame for maximum pad exposure
- Left or right bypass installation option
- Left or right solenoid valve installation option
- Easy Maintenance Through:
- Snap-in-place, easy lift-off cover
- Sturdy two-piece Vapor Pad® frame that easily pulls apart to release & replace the Vapor Pad®
Your furnace sends warm air through the humidifier and a water-soaked Vapor Pad®, evaporating water within the Vapor Pad®. Newly-moistened air is then delivered throughout your home via your home’s duct system. Breathe Healthier® with a GeneralAire® 4200 Evaporative Humidifier.
